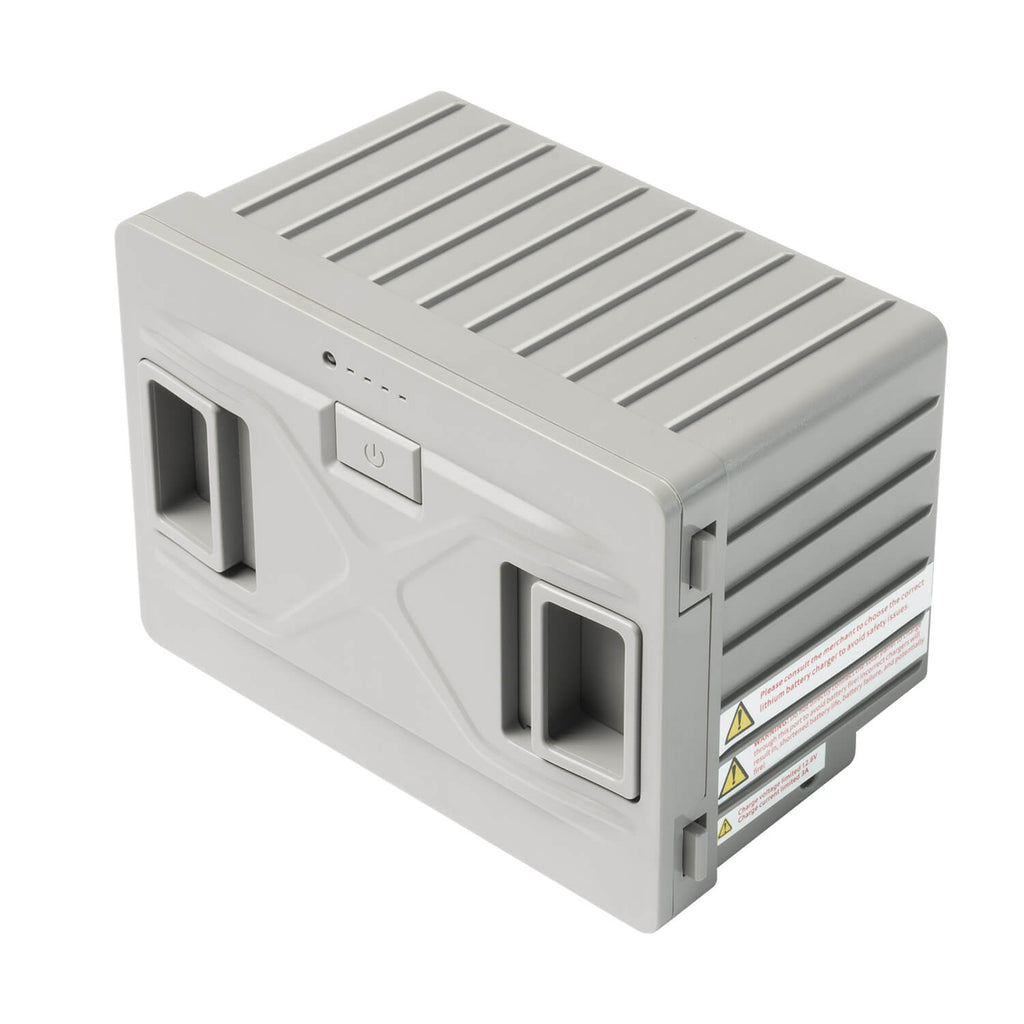

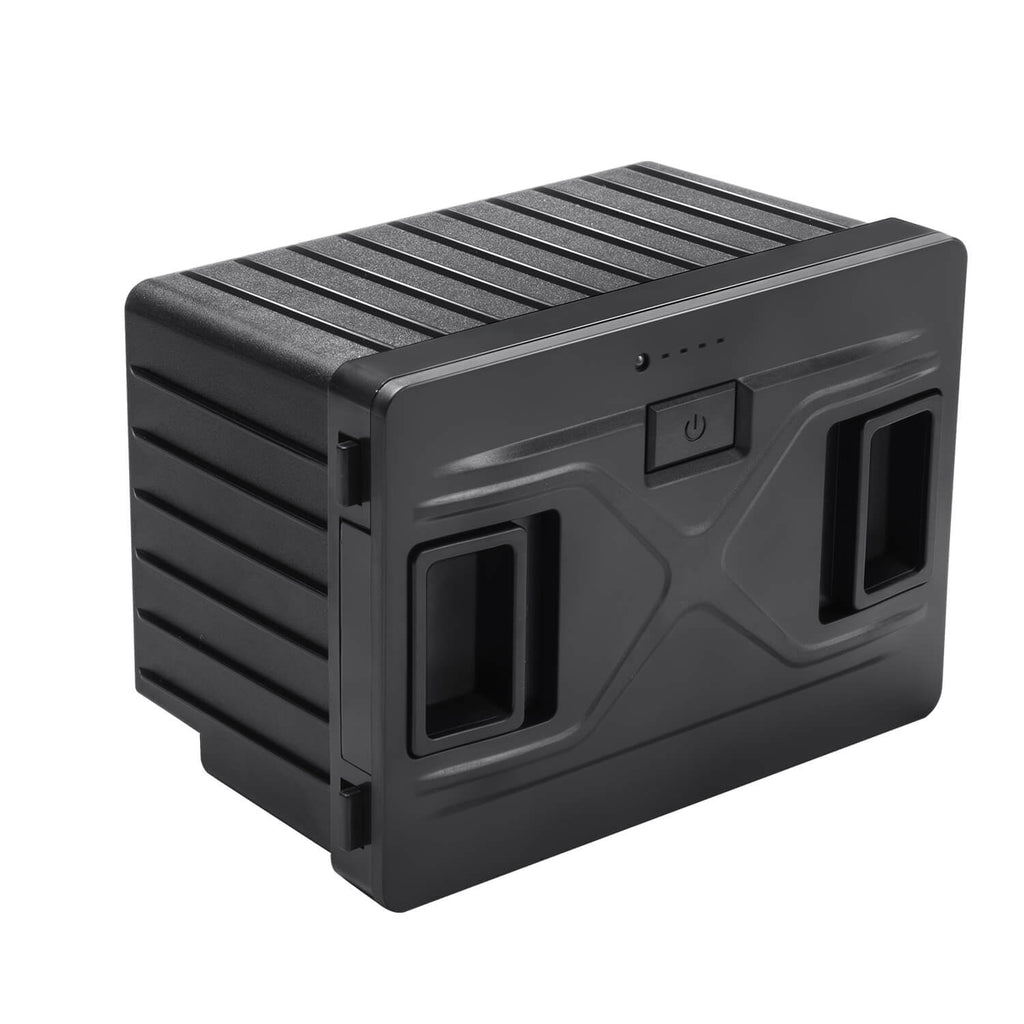

Product Details: detachable battery capacity is 15600mAh/173Wh.Operating temperature range:-4℉ to 168℉.

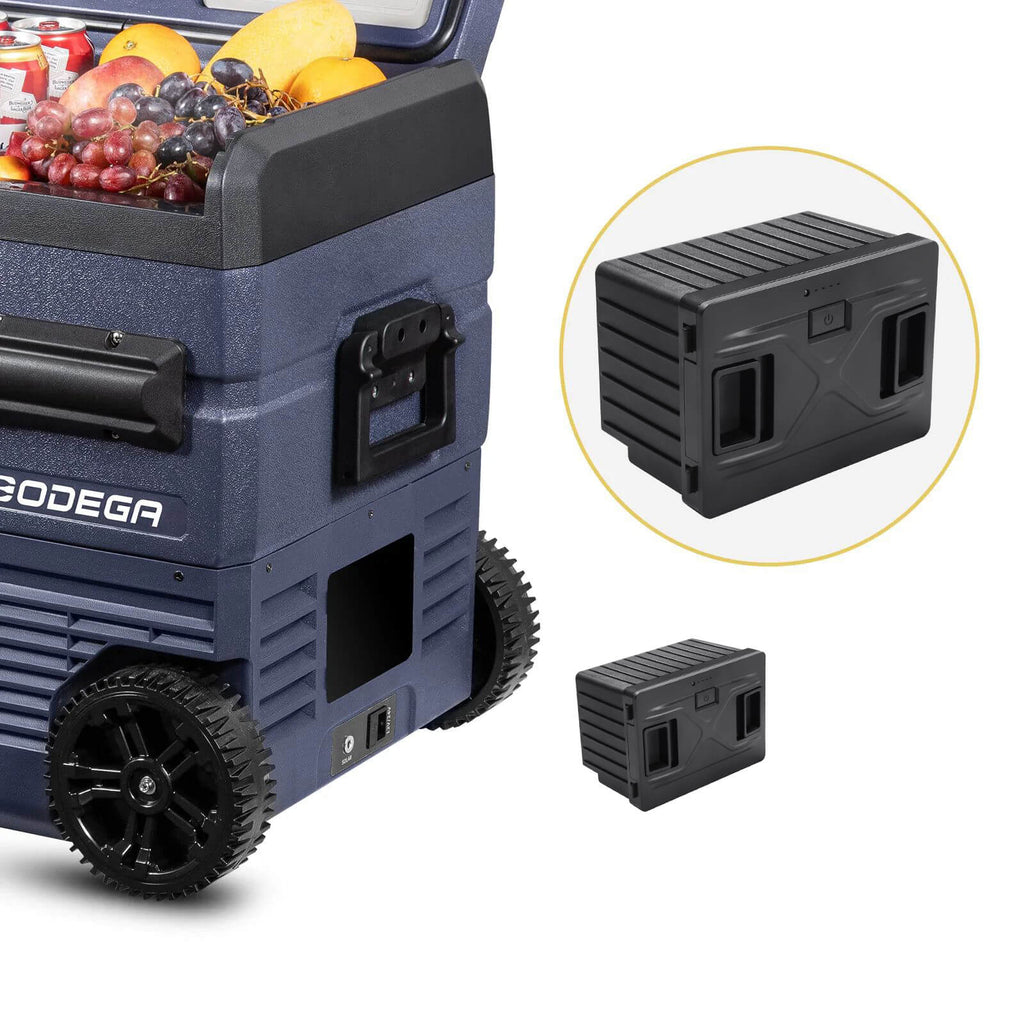

Applicable Models: Bodega TWW series Model and other 12V Portable Refrigerators with Removable Battery.
Multiple Charging Way: This battery can be charged it in the portable fridge (DC 12/24V and AC 100-240V) or solar panel (12-50V). Also, it can be charged by the dedicated battery charger and the charging station. (need to purchase separately)
Instruction for Solar Charging: Install the battery to the refrigerator, and insert the solar charge cable into the refrigerator's ''SOLAR'' terminal. MAX Solar Input Voltage: 50V, MAX Solar Input Current:10A. The charging input power should be higher than the working power of the refrigerator (about 40-50w), or turn off the refrigerator to enter the standby state, otherwise the battery will not be able to charge. It's recommended to use 100W solar panel.
Discharge Time(ECO and L Mode): An empty fridge may refrigerate for about 10 hours and freeze for about 5 hours. The actual duration depends on the set temperature, mode, ambient temperature, and the number of items inside.
Easy Swicth: Long press the power button to turn on/off the battery. The power indicator will turn green when it is charging.
Improved Design: Extrusion buckle design made simplified installation and disassembly. Real-time battery power and the battery voltage will be displayed on the control panel.
![](https://cdn.shopify.com/s/files/1/0560/6309/9070/t/9/assets/new_model_2-1661250321238.png?v=1661250309)
SPECIFICATIONS
Download
Detachable Battery User Manual

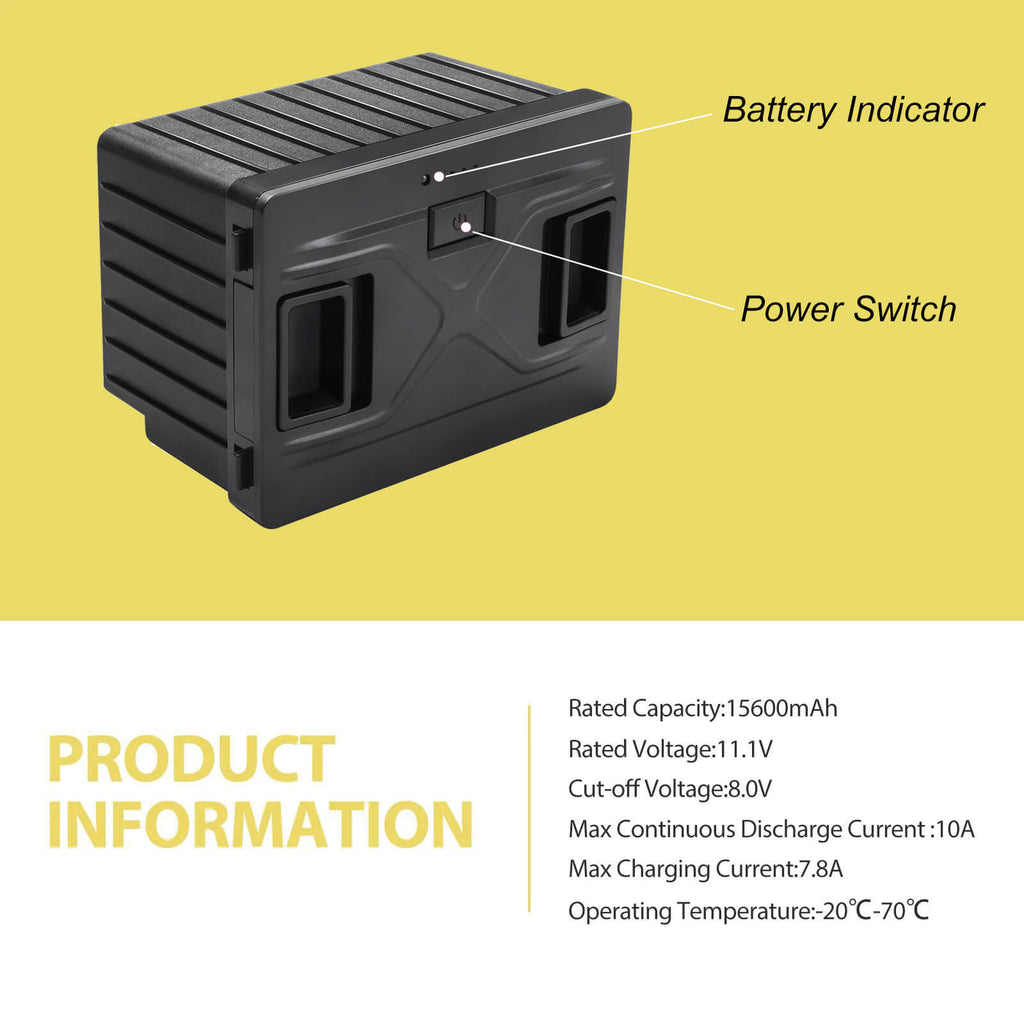

Capacity: 15600mAh/173Wh
Working Time: 4~10 hours
INSTALLATION STEPS
![](https://cdn.shopify.com/s/files/1/0560/6309/9070/t/9/assets/b1-1-1-1641805777830.jpg?v=1641805642)
1. Remove the lid by pressing
![how_to_install_battery-step2(1).jpg__PID:45667b0d-d463-40ef-b164-20fbef5e47b4](https://cdn.shopify.com/s/files/1/0560/6309/9070/files/how_to_install_battery-step2_1.jpg?v=1697786655)

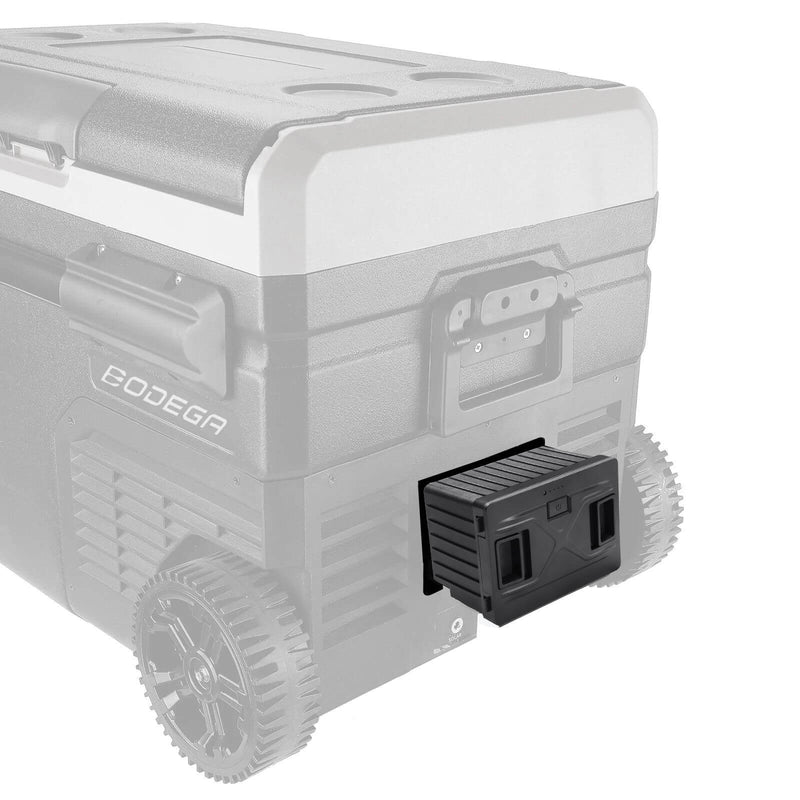

2. Push the battery in by pressing and snapping it into place
![how_to_install_battery-step3(1).jpg__PID:667b0dd4-6320-4fb1-a420-fbef5e47b449](https://cdn.shopify.com/s/files/1/0560/6309/9070/files/how_to_install_battery-step3_1.jpg?v=1697786654)
3. Long press the power button on the battery to switch ON/OFF.
What’s the difference between new and old model?
![](https://cdn.shopify.com/s/files/1/0560/6309/9070/t/9/assets/old_and_new_model_battery2-1662361740132.jpg?v=1662361723)
1. Apperance is improved
2. Old Model equips with Battery Charger
3. New Model has no Charger yet
