Description
Whether you're camping in remote locations or simply seeking a sustainable energy source, BODEGA solar panel will deliver clean, reliable power wherever you go.
For 95% Portable Solar Generator/12V Batteries
Anderson Connector for Jackery Explorer 1000, ROCKPALS 300W, Ecoflow, and other solar generators.
Anderson Connector for Jackery Explorer 1000, ROCKPALS 300W, Ecoflow, and other solar generators.
DC 5.5*2.1mm Cable for Rockpals 250W/350W/500W, FlashFish 200W/300W, PAXCESS ROCKMAN 200/300W/500W, PRYMAX 300W/SinKeu HP100 portable generator.
DC 7.9*0.9/8mm Connector(not included) for Jackery Explorer 160/240/300/500/1000, Goal Zero Yeti 160/240/300, BALDR 200/330W, Anker 521 Power Station, BLUETTI EB 240.
You can also buy a XT60 Connector(not included) for EF ECOFLOW RIVER Pro 720Wh/DELTA 1260Wh/Anker 757 PowerHouse 1229Wh
Aviation Connector(not included)for BLUETTI Portable Power Station AC200MAX 2048Wh
DC 7.9*0.9/8mm(not included) to DC 3.5*1.5mm(not included)/5.5*2.1mm(not included)/ 5.5*2.5mm(not included) Adapter to charge your power stations.
DC 3.5*1.5mm Adapter(not included) for Suaoki S270, ENKEEO S155, Paxcess 100W, Aiper 150W, JOYZIS, MARBERO portable generator.
DC 5.5*2.5mm Adapter(not included) for Suaoki 400wh portable generator, GRECELL 300W power station
You can also buy a charge controller cable, a charge controller, and a charge controller to Alligator clip cable separately, connecting them with our Solar Panel to provide endless power for 12-volt batteries (AGM, LiFePo4, lead-acid, gel, lithium, deep cycle batteries) of cars, boats, ships, trailers, and RVs.
High Energy Conversion Efficiency
Advanced solar cells on the solar panel provides a higher 21% conversion efficiency, outperforming comparable solar panels - producing more power under similar conditions.
SMART CHARGING TECHNOLOGY--How to Build the Series or Parallel Connection?
A single 200W solar panel is great for small and medium devices charging. With a professional parallel connector, you can also parallel 2 GRECELL 200W solar panels to get more output power to recharge the large-capacity power stations faster.
The solar panel is equipped with PV-rated cables. The Positive connector is a male connector and the negative connector is a female connector, these wires by themselves are rated for series connections.
When the solar panels are connected in series (+ connected to -, + connected to -), the voltage is added;
when the solar panels are connected in parallel (+ connected to +,-connected to -), the current is added.
Note: Parallel connection, it need to purchase extra Y connectors, (Negative to Negative, Positive to Positive)
Instant Setup

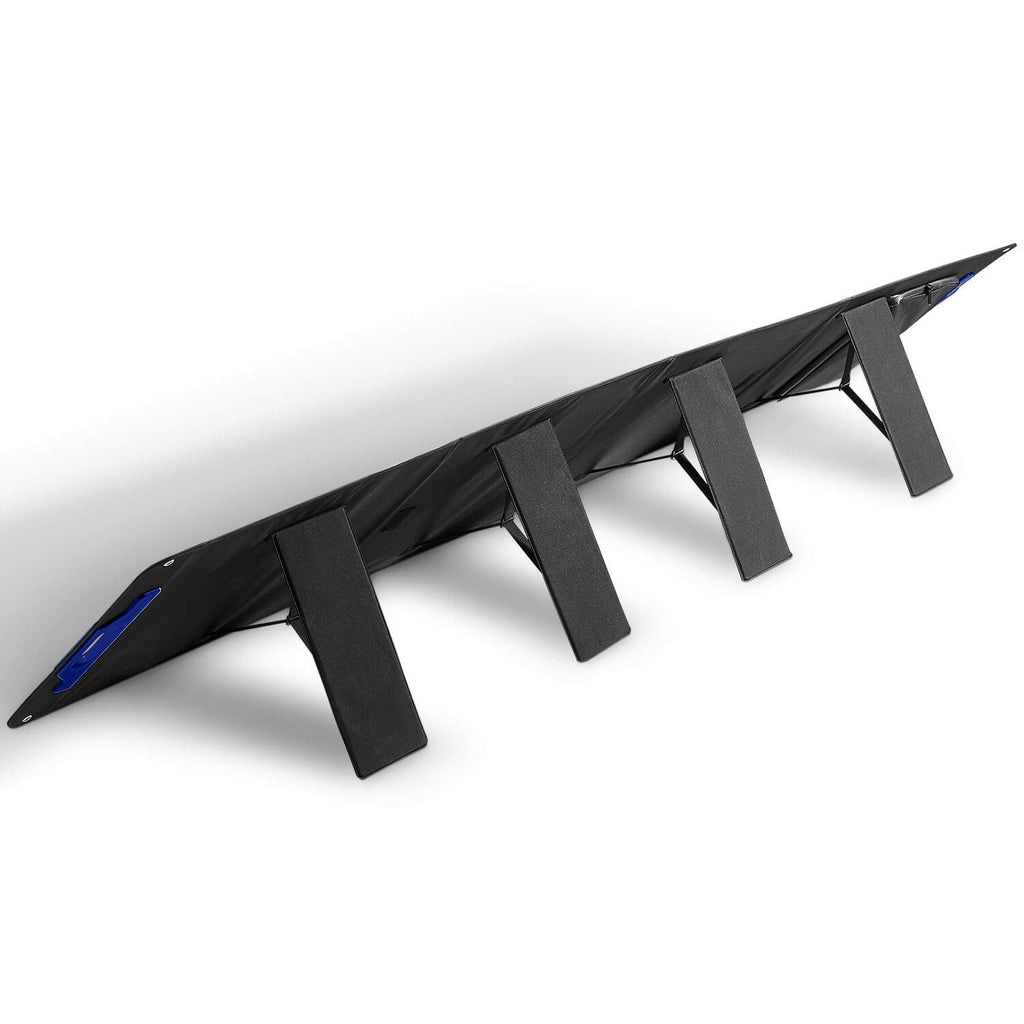

With a few seconds to set up, the solar panel stands firmly and securely thanks to its 4 kickstands. The recommended angle ensures optimum absorption of the sunlight, making it the perfect companion for outdoor travel.
Portable and Foldable for Convenient Carrying
A practical carrying bag is included for easy transport. Magnetic pads on the solar panel allow the solar panel to be folded up tightly and carried on your favorite off-grid journeys.
Prolonged Lifespan
The ETFE-laminated case ensures the solar panel is durable enough for a prolonged lifespan. Additionally, the IP67 Waterproof Rating allows it to withstand harsh weather.
Technical Details
| Model | GSM200 |
| Solar Cell | Single crystal |
| Solar cell Lamination | ETFE |
| Cell Efficiency | up to 21% |
| Voltage at Max Power (Vmp) | 19.8V |
| Current at Max Power (Imp) | 10.1A |
| Open Circuit Voltage | 23.76V |
| Short Circuit Current | 12.12A |
| Weight | 7.82 kg |
3 YEARS WARRANTY&24 HOURS SUPPORT
With 2-Years warranty. We have a professional technical support team responsible for the solar panel.
FAQs
- How do solar panels work?
A: Solar panels convert sunlight into electricity through the photovoltaic (PV) effect. The panels consist of solar cells that absorb sunlight, generating direct current (DC) electricity. An inverter then converts the DC electricity into alternating current (AC), which is suitable for powering homes and businesses.
- Can solar panels work during cloudy or rainy days?
- Why Doesn’t My UB-200 Solar Panel Reach Its Rated 200W?
A: The specifications provided were determined in a laboratory setting that has constant and controlled conditions. When a solar panel is actually being used, it is normal that the actual power does not reach the rated power. Solar panel efficiency is affected by many factors. Below are the factors that may affect the actual power output: Sunlight Intensity, Panel Surface Temperature, Sunlight Exposure Angle(90-degree), the Input limit of the device being charged, and Other Interferents like tree/cloud shadows, foreign objects, dust, or other sticky substances, etc. Please try to test your solar panel under full sunlight, cloudy weather may affect its normal working power, and make sure there is nothing shadow cast on the panel.
- Is the GRECELL UB-200 Flexible solar panel waterproof?
A: It is IP65 waterproof that will protect from water splashing. Do not place it under the rain, or soak it in water for a long time(Note: The junction port is not waterproof, please keep it dry).
